Alfa Laval PureBallast 3 explored

Alfa Laval PureBallast 3 is an effective solution for all aspects of ballast water treatment, from biological disinfection performance to footprint and power management. Its inline construction and flexible design are suited to nearly any vessel. Single systems handle ballast water flows of 32-3000 m3/h, and multiple systems can be used for even larger capacities.

Solution overview

PureBallast 3 combines initial filtration with enhanced UV treatment in a specially designed reactor. PureBallast 3 Compact Flex, shown here, is the ideal system for most vessels due to its minimal footprint and high installation flexibility.

ballast treatment
ballast water treatment

Treatment technology

Alfa Laval PureBallast 3 uses an enhanced form of UV treatment, developed in cooperation with Wallenius Water. It performs without the addition of salt or chemicals, even when operating in fresh water.

Biological disinfection

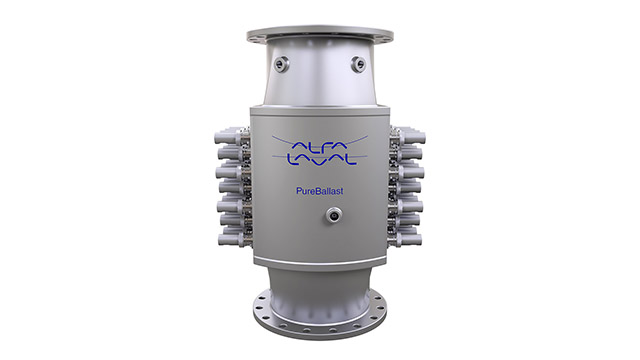

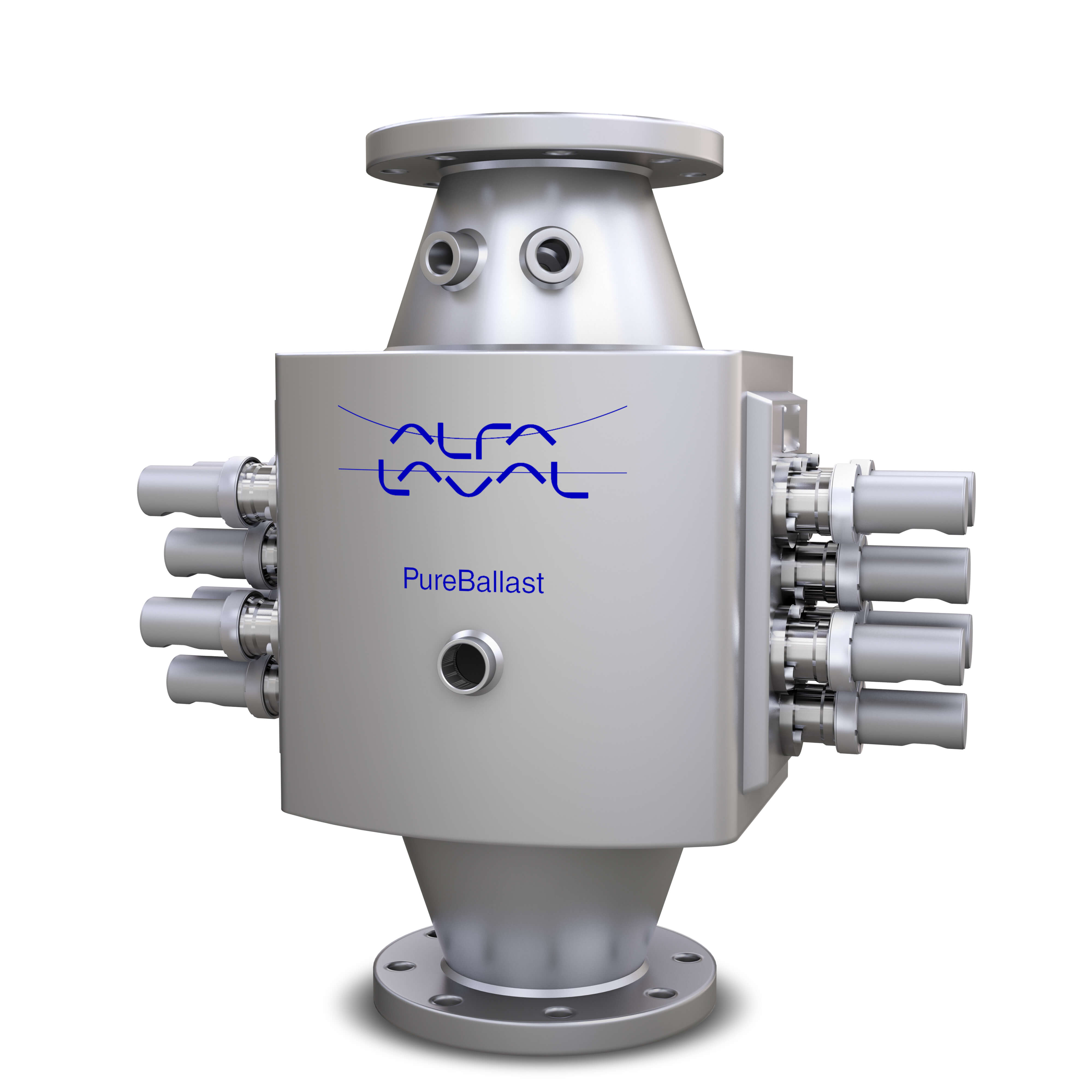

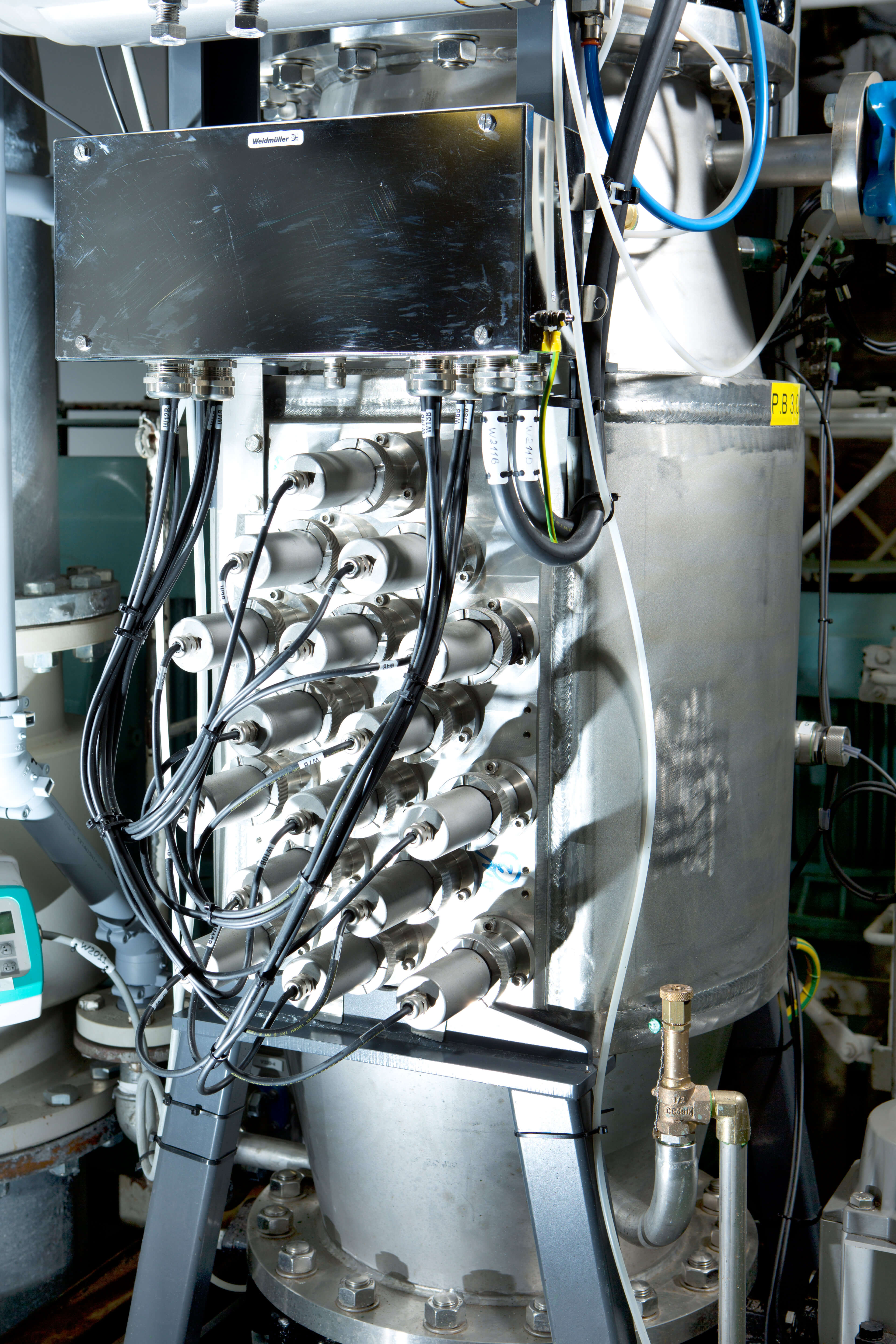

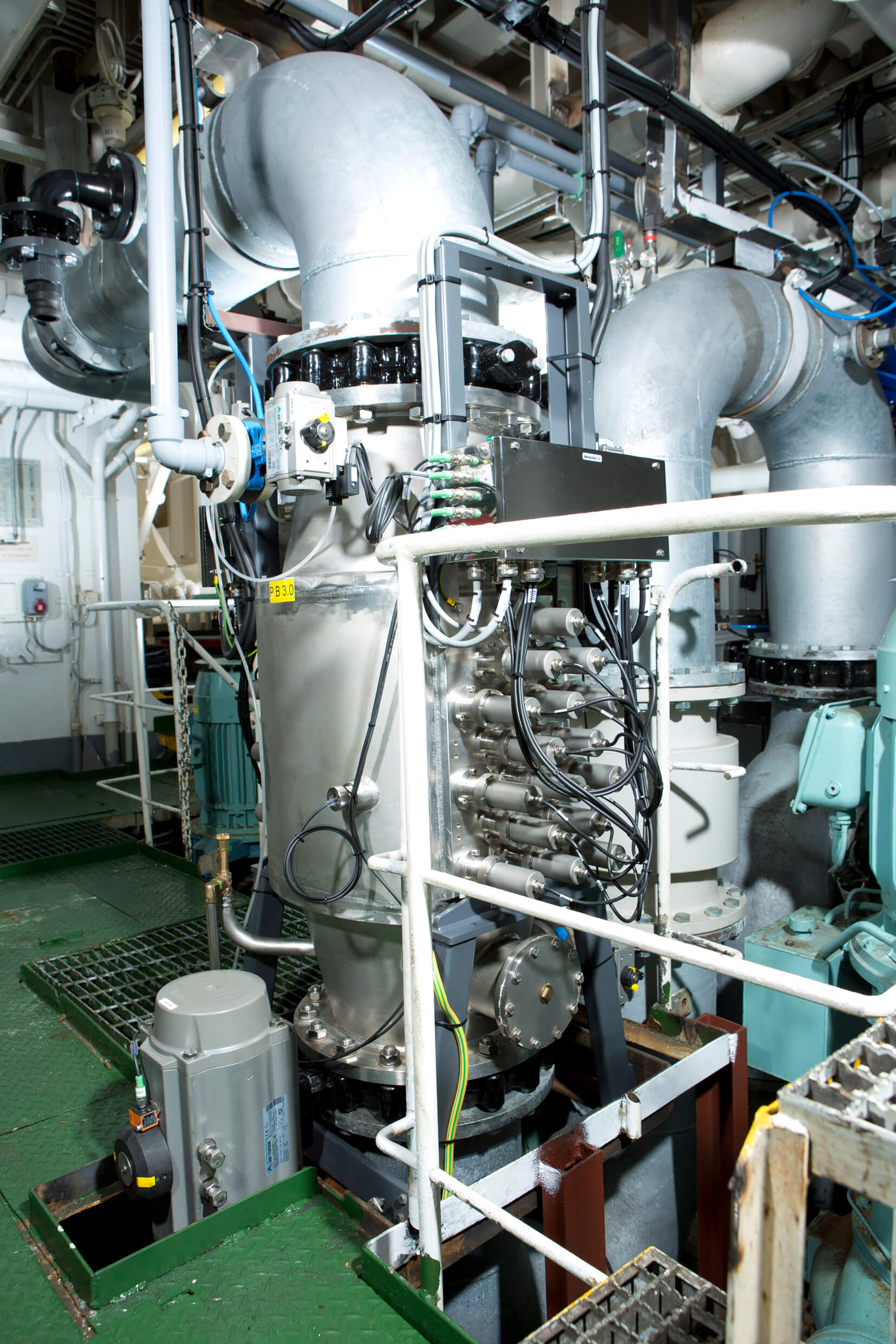

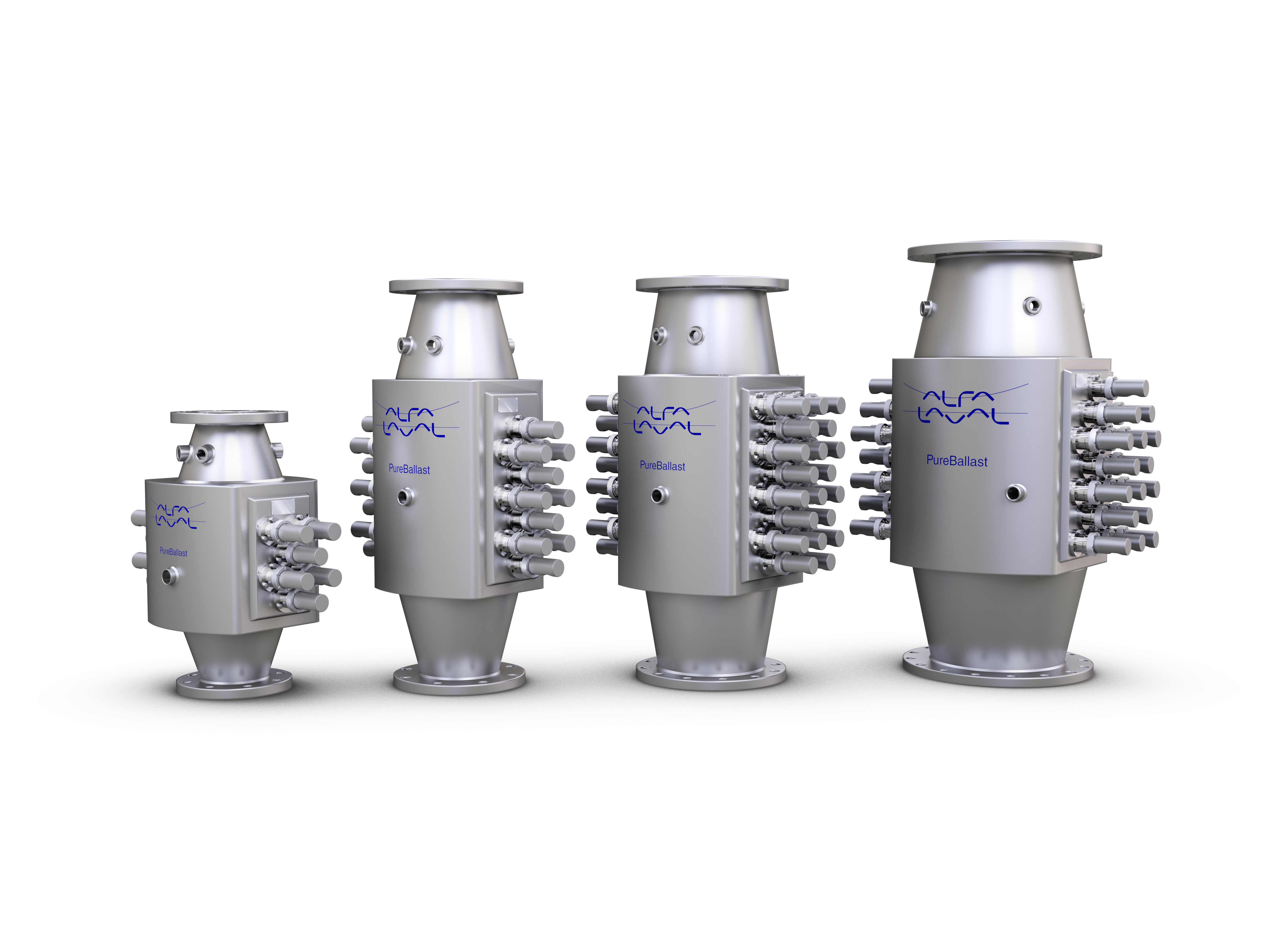

Biological disinfection, which is the main treatment process, occurs within an enhanced UV reactor. The reactor has a flow-optimized interior that ensures high turbulence and the concentration of the UV dose.

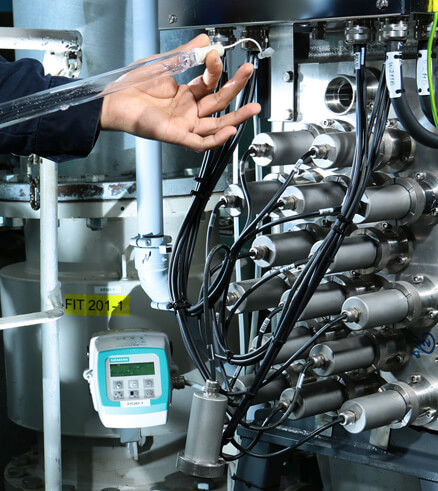

The medium-pressure UV lamps within the reactor employ specially designed lamp sleeves of synthetic quartz. These unique sleeves support transmission of a broader wavelength spectrum and provide more UV light during disinfection. Combined with the reactor’s internal design, this ensures optimal UV dosage and low energy consumption.

Filtration

Supporting the reactor is a filter stage, used to remove any larger organisms and particles prior to biological disinfection. This improves the quality of water for treatment, especially when operating in cloudy coastal waters and fresh water.

In combination with the reactor, the effective basket filter design enables full-flow treatment of fresh, brackish and marine water with UV transmittance as low as 42%.

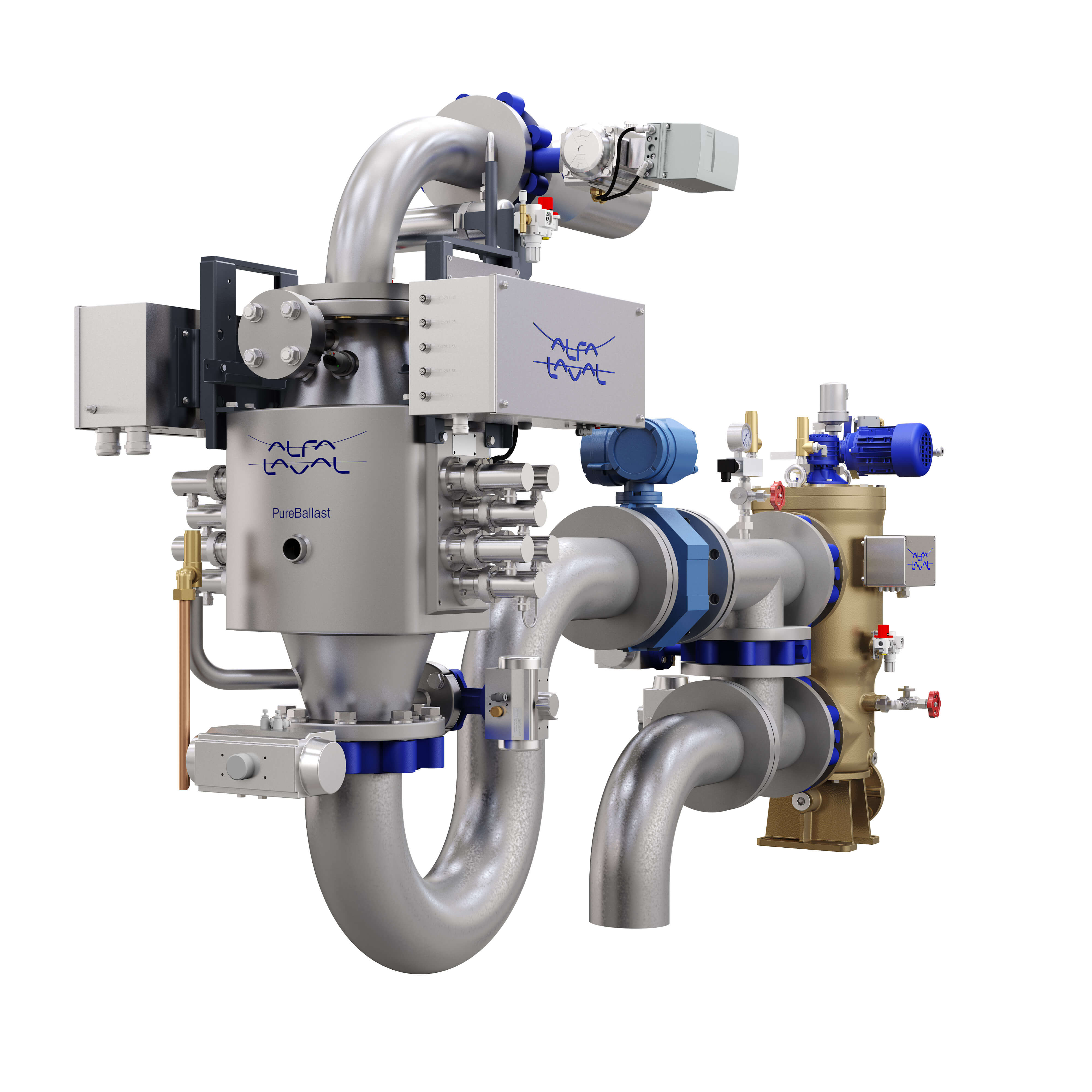

PureBallast 3 Compact Flex

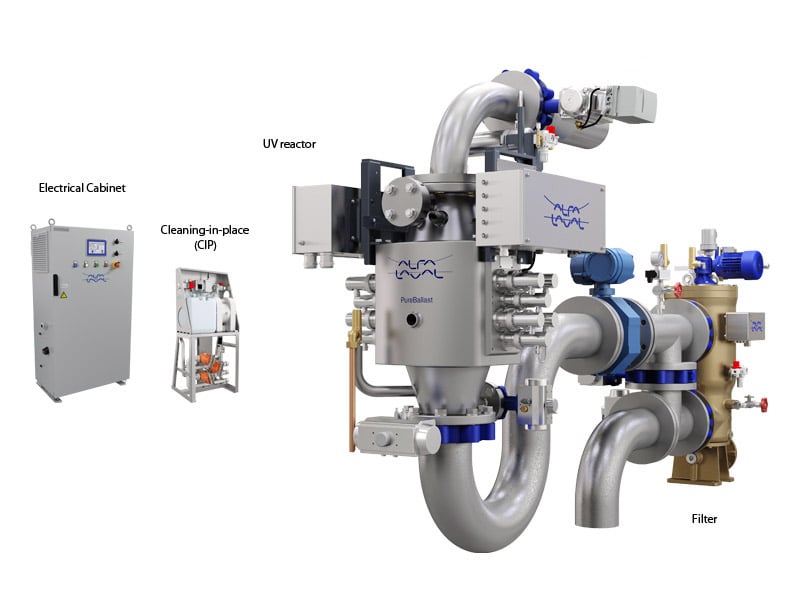

PureBallast 3 Compact Flex is the answer to space and flexibility concerns. Ideal for most vessels, it arrives as loose components for complete installation freedom.

Available for flows of 32–1000 m3/h, PureBallast 3 Compact Flex is delivered as loose components for easy, space-saving installation. With a compact design and the highest possible flexibility, it provides the answer to installation challenges – especially in retrofits and other situations where space is vital.

The treatment stages are integrated into the ballast water piping as inline components. Simple plug-and-play contacts reduce time and cost for engineering and installation, making PureBallast 3 Compact Flex the perfect fit for most projects.

Treatment components (inline)

  • Filter
  • UV reactor

Support components (flexibly placed)

  • Electrical cabinet
  • Lamp drive cabinet (1 or 2) for flows >300 m3/h
  • Compact Cleaning-In-Place (CIP) unit

A broad range of auxiliary equipment is available to support integration into any vessel, including backflush pumps, sampling points, valve packages and remote-control panels.

PureBallast 3 Compact Flex is available with both IMO and U.S. Coast Guard (USCG) type approvals.

ballast treatment

ballast system

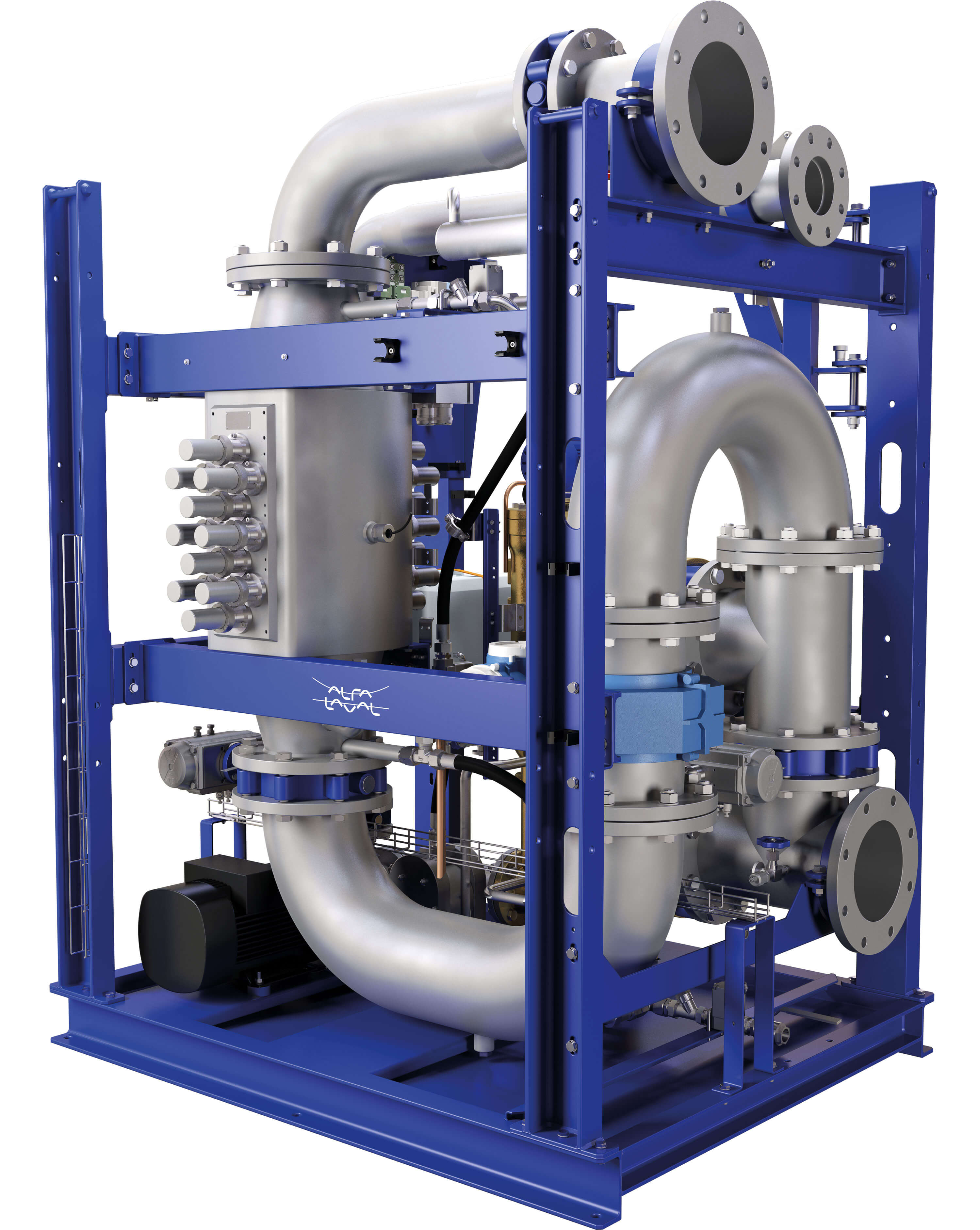

PureBallast 3 Compact

PureBallast 3 Compact is a convenient solution for smaller ballast water flows. It integrates the system into a plug-and-play module with a small footprint.

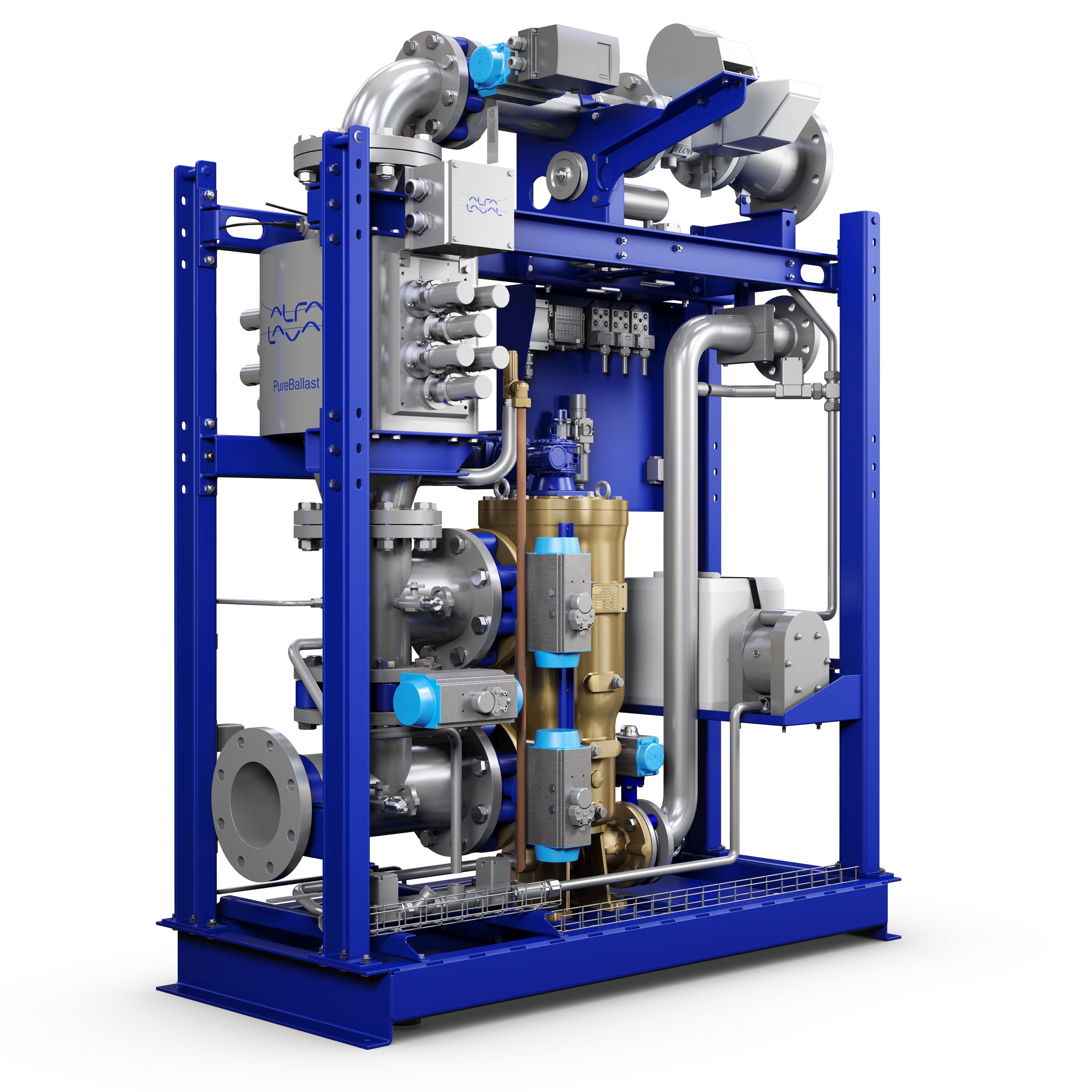

Skid-mounted solutions

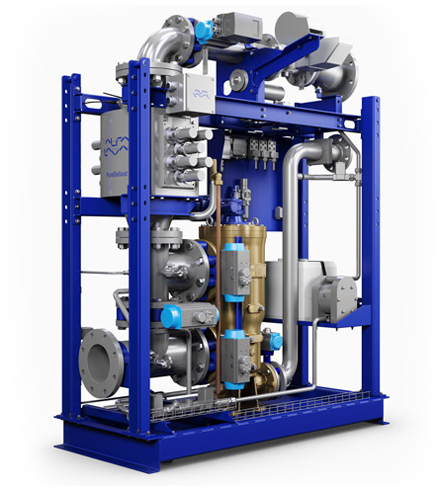

Alfa Laval PureBallast 3 Compact can be delivered as a skid-mounted module, this makes it not only compact, but also easy to install due to minimized pipework. The skid has a minimal footprint and is connected via simple plug-and-play contacts. For flows of 32-300 m3/h.

All components are incorporated into the skid, apart from an electrical cabinet that is flexibly placed. This cabinet is a combination of the lamp drive cabinet and control cabinet of larger systems.

The following components are incorporated into the PureBallast 3 Compact skid-mounted:

  • Filter
  • Reactor
  • Compact Cleaning-In-Place (CIP) unit
  • Electrical cabinet, is flexibly placed up 30m from UV-reactor

A broad range of auxiliary equipment is available to support integration into any vessel, including backflush pumps, sampling points, valve packages and remote control panels.


PureBallast 3 Std & Ex

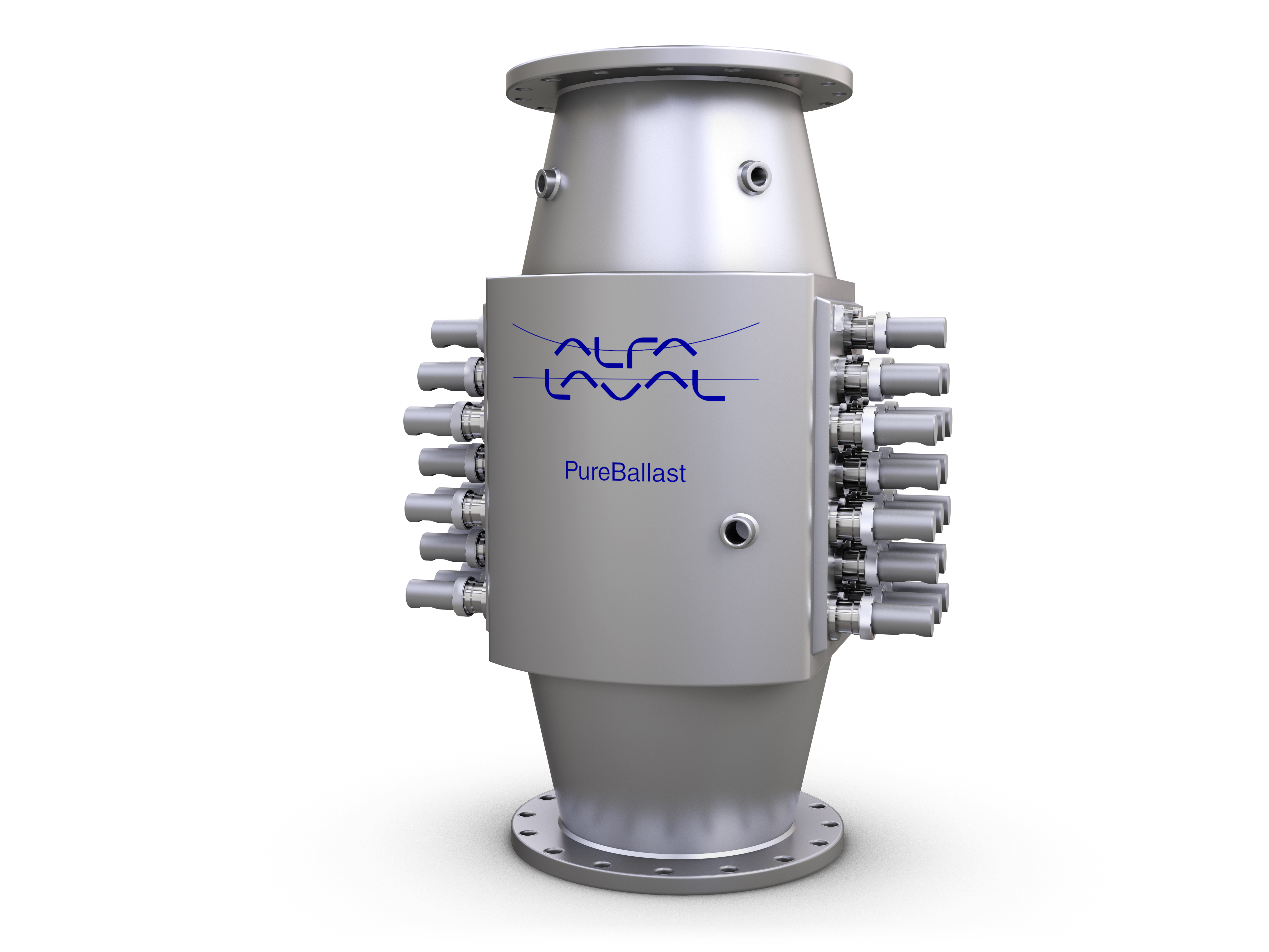

PureBallast 3 Std systems handle large ballast water flows effectively, with a 1500 m3/h reactor size enabling streamlined and cost-effective system configurations. For potentially explosive environments they can be configured as PureBallast 3 Ex systems, which are available with deckhouse options for tankers.

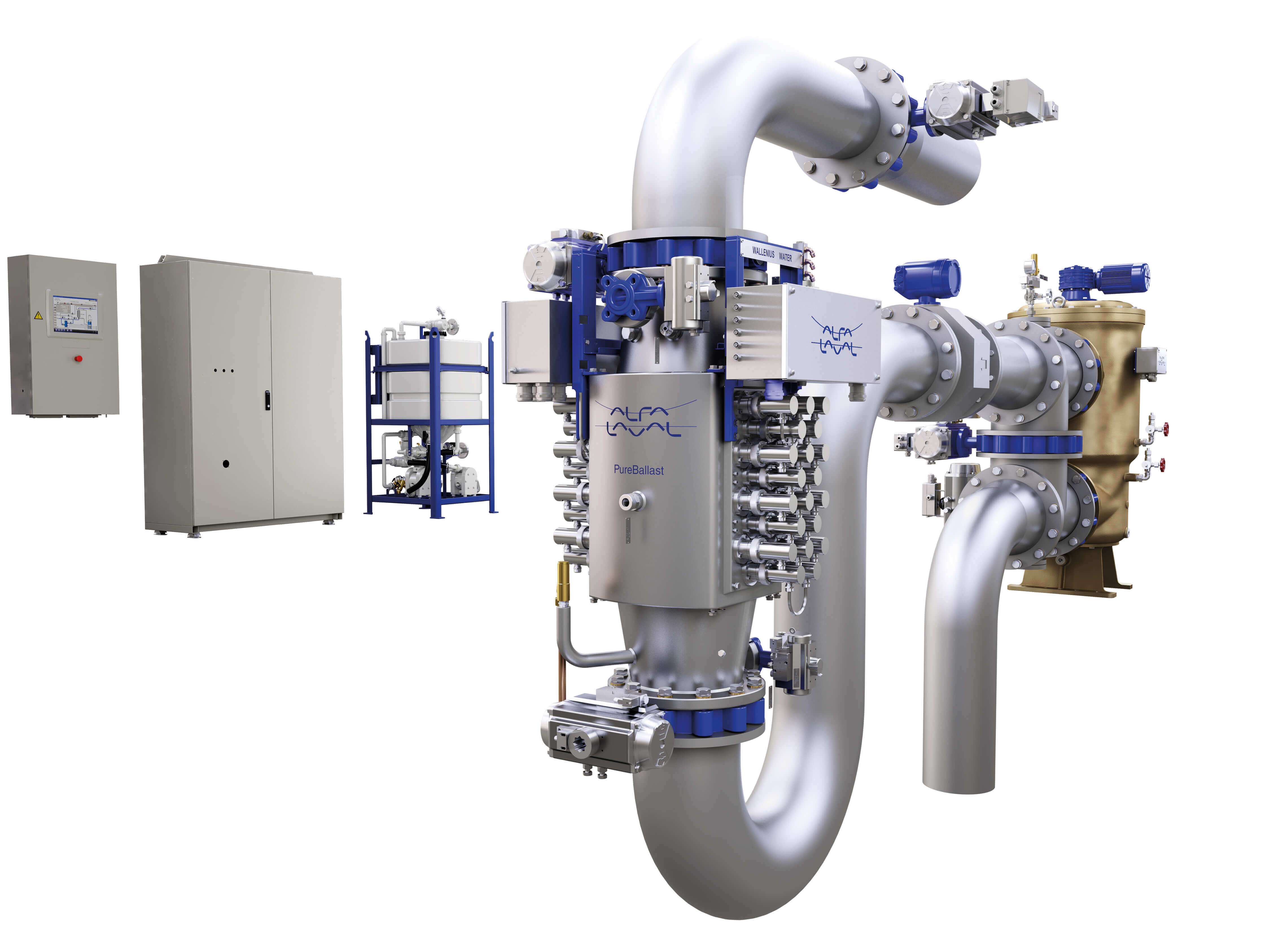

Large flows with PureBallast 3 Std

PureBallast 3 Std systems can be configured for large flows and have the broadest installation parameters, including free placement of lamp drive cabinets within a 150 m radius. Individual systems can handle flows of 250–3000 m3/h, with dual systems providing coverage for up to 6000 m3/h. Because the 1500 m3/h reactor size means only one or two reactors are needed, the cost and complexity of large-flow systems are kept to a minimum.

Treatment components

  • Filter
  • Reactor

Support components

The additional components are support systems that can be flexibly placed for an optimal design.

  • Lamp drive cabinet
  • Cleaning-In-Place (CIP) unit
  • Control cabinet

The same treatment and support components are used in PureBallast 3 Ex systems (see below).

A broad range of auxiliary equipment is available to support integration into any vessel, including backflush pumps, sampling points, valve packages and remote control panels.

system overview 3 white

ballast water system

Ex systems

PureBallast 3 for large flows and Ex-design, configurations available for 250-3000 m3/h, and even larger flows with multiple systems.

Safety with PureBallast 3 Ex

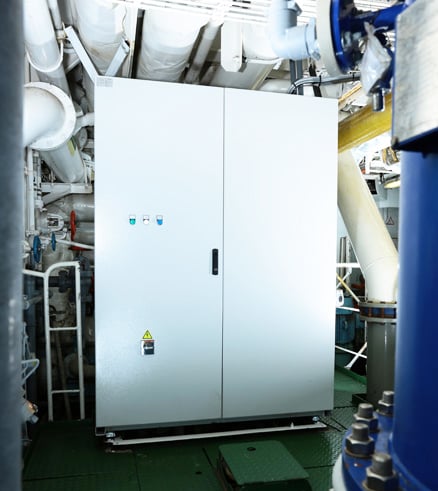

PureBallast 3 Ex systems are available for flows of 250–3000 m3/h, with dual systems providing coverage for up to 6000 m3/h. They can be supplied in range of Ex configurations according to ATEX and IECEx, Zone 1, IIC and T4. Design is simplified by the flexible placement of the lamp drive cabinets, which can be located outside the hazardous zone and up to 150 m away from the reactors they serve.

Redundant safety features, such as the connection of the reactor temperature and level sensors via relays that bypass the PLC, increase safety in operation.


Deckhouse for PureBallast 3 Ex

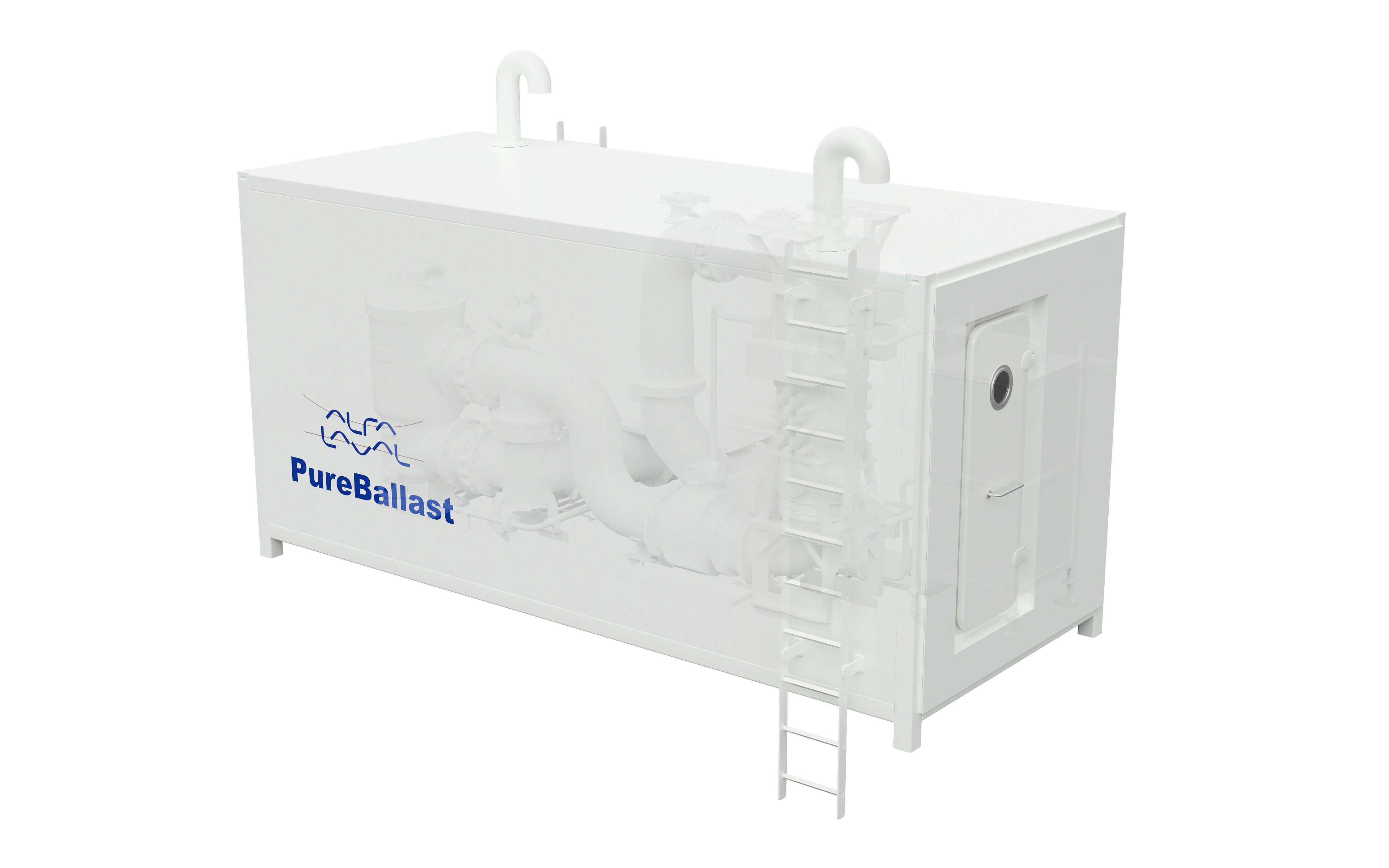

Many tankers use submersible pumps to eliminate the need for a pump room and maximize space for product. This often leaves insufficient internal space for a ballast water treatment system. For this reason, pre-assembled PureBallast 3 Ex systems can be delivered in a standardize deckhouse, complete with all interior piping.

The flow-related components of the PureBallast 3 Ex system (UV reactor, filter and CIP unit) are contained within the deckhouse, while the lamp drive cabinet and control cabinet are installed outside the deckhouse and within the vessel’s safe zone.

PureBallast 3 Std and Ex systems are available with both IMO and U.S. Coast Guard (USCG) type approvals.

ballast system

Operating sequence

PureBallast 3 performs in the background, running in IMO-regulated waters at just 50% of its potential operating power in most situations. It can be ramped up to full power for the most difficult operating scenarios.

pureballast ballasting 960x480

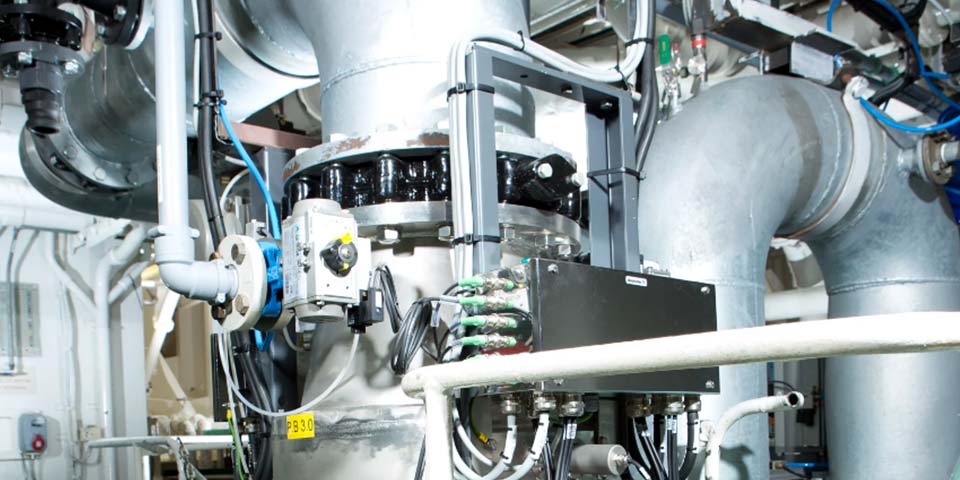

Ballasting

PureBallast 3 is a fully automated system. When initiated, it undergoes a brief start-up sequence.

When ballasting begins, the incoming ballast water first passes through the filter stage. This removes any larger organisms and particles, which improves the quality of the water for treatment. The filter stage is of benefit for operation in cloudy coastal waters and fresh water.

After filtration the water continues through the reactor stage, where it is disinfected by means of enhanced UV before entering the ballast water tanks.

Once ballasting is complete, reactor cleaning is performed via an automatic Cleaning-In-Place (CIP) cycle. This cycle is prompted immediately after ballasting and should be performed within 30 hours. The reactor stage is rinsed with fresh water when the CIP cycle begins and filled with fresh water upon its completion.

The filter stage is also filled with fresh water once ballasting is completed.



Deballasting

The deballasting process is essentially the same as the ballasting process. However, the filter stage is bypassed during deballasting since the water has already been filtered.

After leaving the ballast water tanks, the outgoing ballast water passes through the reactor stage to eliminate any regrowth of microorganisms that may have occurred in transit. Having thus been disinfected to the established limits, it is discharged into the receiving water at the deballasting site.

The same start-up and shutdown sequence, including CIP, is employed during both ballasting and deballasting.

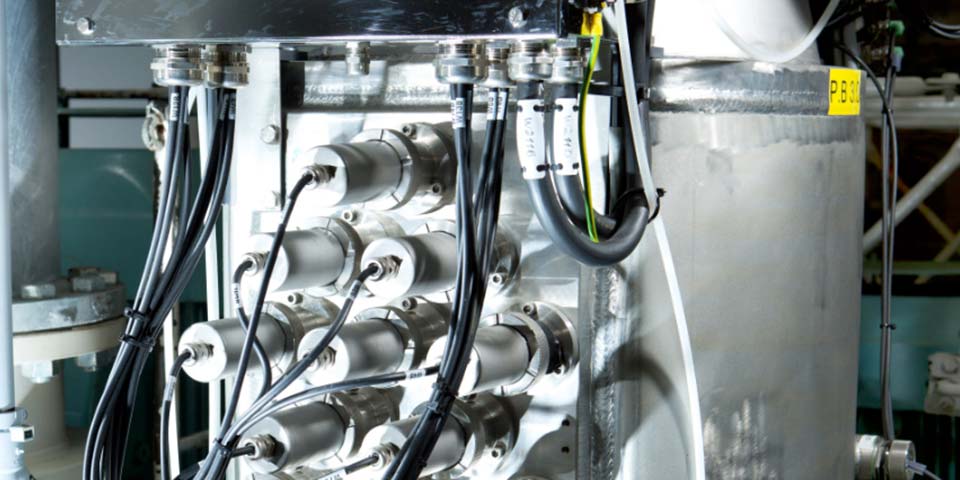

pureballast deballasting 960x480
