Let the Alfa Laval PlusClean® UltraPure cleaning nozzle revolutionize tank cleaning in your sterile and aseptic processes. Paired with your top-mounted tank cleaning device, the PlusClean® UltraPure smoothly integrates into the tank wall or bottom. When activated during Cleaning-in-Place (CIP), it hits shadow areas with a fan of pressurized cleaning media, guaranteeing 100% impact cleaning coverage, up to 80% savings in water and cleaning media costs, and 0% contaminants.
Boost product integrity and yield higher with unprecedented 100% tank cleaning coverage
- Get 100% impact cleaning coverage
- Up to 80% reduction in water and cleaning media consumption
- Eliminate product contamination risks and raise product yield
- Meet the sterile and aseptic process requirements in the biotechnology and pharmaceutical industries
- Cut total cost of ownership due to very low maintenance requirements and reduced water, cleaning media and wastewater costs
Perfect for biotech and pharma applications, the PlusClean® UltraPure optimizes the cleaning efficiency of the primary cleaning device, regardless of whether a static spray ball, rotary spray head or a rotary jet head. Depending on the overall design of your tank, you can configure the cleaning nozzle either in the tank wall or on the bottom. Choose one of three different spray patterns and one of two different weld plates for mounting to customize your cleaning nozzle to your requirements.
Special product line
In addition to the standard PlusClean® UltraPure with a piston activated by the cleaning media, a special pneumatic version is available. The pneumatic version activates the piston using controlled air pressure. When used together with the Alfa Laval ThinkTop, you have a full overview of your tank cleaning process, including feedback signals such as open/closed and purging option.
Count on extended equipment performance and more uptime due to low-wear components that are easy to replace on site, minimizing downtime. The PlusClean® UltraPure cleaning nozzle has no moving parts that extend into or retract from the tank. Durable, reliable genuine parts from Alfa Laval deliver outstanding performance, lower your total cost of ownership and preserve the value of your equipment throughout its entire life cycle.
How it works
How it works

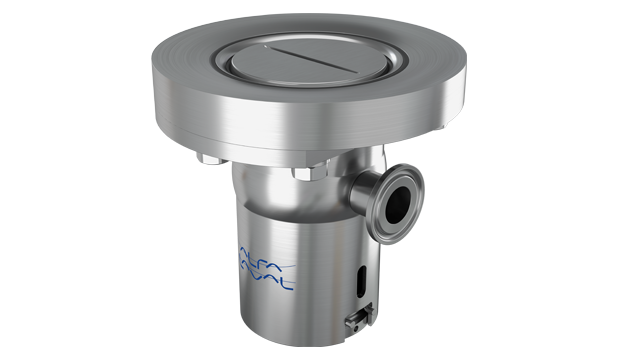

The Alfa Laval PlusClean® UltraPure cleaning nozzle is installed flush with the tank wall and/or tank bottom. When activated either by the cleaning media or by controlled air pressure, the nozzle creates a high impact force spraying the cleaning media in a fan pattern directly onto the soiled area. Cleaning coverage is ensured through controlled and repeated rotation of the shaft and agitator blades.
Upon completion of the cleaning cycle, the integrated spring mechanism restores the piston to its original position, securely closing and sealing off the cleaning device. If purging is required, always operate with the actuator.
How clean is your tank?
Alfa Laval PlusClean® and Alfa Laval PlusClean® UltraPure is a revolution in hygienic tank cleaning. When activated during Cleaning-in-Place (CIP), PlusClean hits shadow areas with a fan of pressurized cleaning media, giving you the market’s first guarantee of 100% impact cleaning coverage.
360° Service and maintenance videos

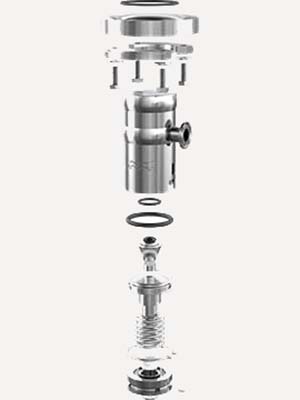

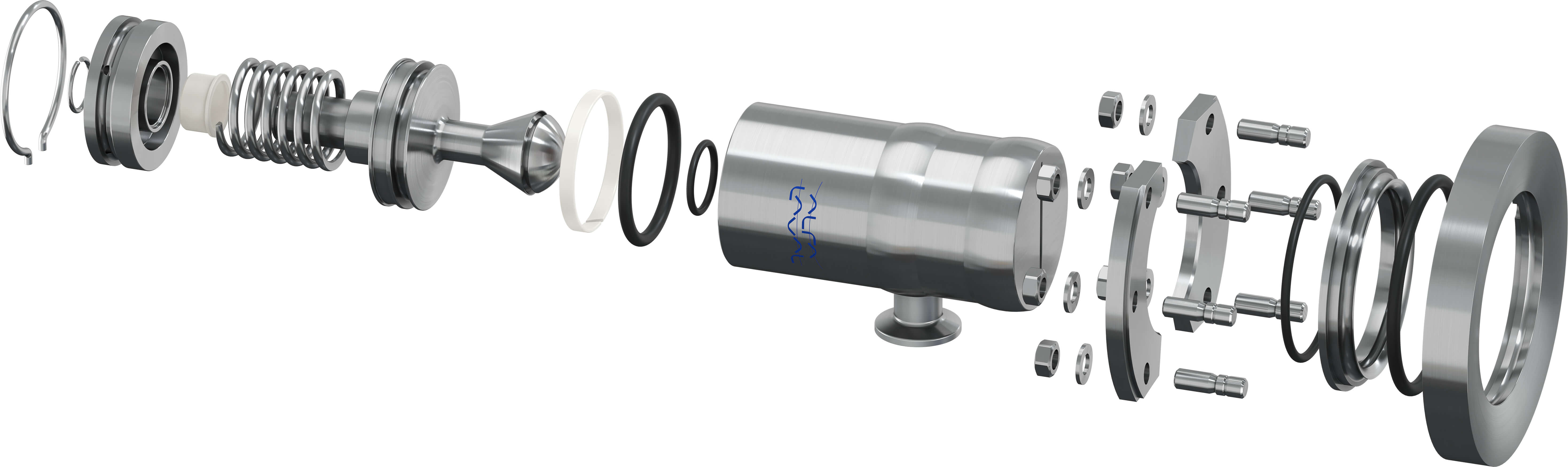

How to assemble the Alfa Laval PlusClean®
How to disassemble the Alfa Laval PlusClean®
