TJ

Alfa Laval’s range of Rotary Jet Head tank-cleaning devices provide exceptional cleanability, better end-product quality, greater overall output and up to 70% reduction in operating costs. They are designed for hygienic applications, such as food, dairy, personal care and beverages.

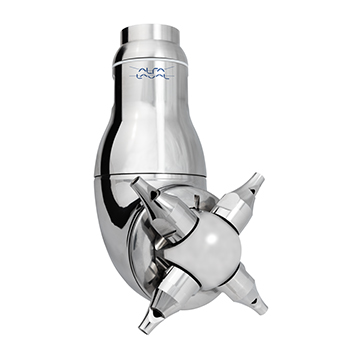

TJ series rotary jet head

High impact quality assured cleaning in a 360° repeatable cleaning pattern

  • Avoid contamination with effective cleaning performance and superior self-cleaning features
  • Cost efficient and sustainable solution due to reduced water and chemicals requirements
  • More available production time because of reduced cleaning time
  • Easy to service and maintain – no special tools required
  • Control of CIP through validated cleaning
The TJ range provides automated 3D-indexed impact cleaning over a defined time period for processing, storage and transportation tanks and other vessels between 15 and 500 m3 The award-winning design is suitable for cleaning brewing equipment as well as for food and dairy processes and is a cost effective means of achieving hygienically safe, quality assured tank cleaning.
.

The Alfa Laval TJ range of rotary jet heads for your tank cleaning needs

Effective tank cleaning with low operating costs

The strong jet generates a high mechanical force and covers 360° to efficiently remove remaining products and residues and provide the best hygienic conditions for production. As the force generated by the rotary jet head increases, the water consumption decreases, which leads to significant cost savings as illustrated in the diagrams. (based on Dr. Sinner’s cleaning philosophy.

  • Cost savings (water, chemicals): 70%*
  • Time saving = more production time: 60%*

*compared with traditional static spray ball cleaning







Static Spray Ball



Alfa Laval TJ20G / TJ40G







     Blue = Water consumption/time
     Red = Mechanical action
     Yellow = Temperature
     Grey = Chemicals

How it works

.

Dynamic tank cleaning machines

The flow of the cleaning fluid makes the nozzles rotate around the vertical and horizontal axes. In the first cycle, the nozzles deposit a coarse pattern on the tank surface. Subsequent cycles gradually add density to the pattern, until full coverage is reached after eight cycles. The operation is fully automatic and provides users with effective quality assurance guarantees in tank cleaning, complete with all the necessary documentation.

Complete self-cleaning system

Not only does the Alfa Laval TJ range of rotary jet heads provide spotless cleaning of the tank interior, it also cleans itself – inside and out. The hygienic self-cleaning design ensures that the flow of the cleaning fluid covers the external surfaces of the rotary jet head to reduce the risk of cross contamination and potential product loss or recalls.

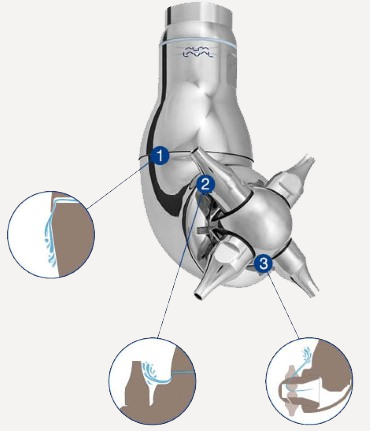

1. Overlap ensures self-cleaning of the body

2. The nozzle’s concave shape ensures self-cleaning of the nozzle itself

3. Through two holes in the hub, jet streams ensure cleaning of the cone







Low pressure drop

The low pressure loss over the machine results in increased cleaning efficiency compared with other tank cleaning machines running at the same inlet pressure. This results in lower cleaning costs as the unit can run at lower pressure/flow.







Part of a broad tank equipment range

Alfa Laval offers a comprehensive range of tank equipment intended for hygienic applications in the dairy, food, beverage, home care, personal care, biotechnology and pharmaceuticals.

For a broader tank equipment range, explore the different product categories: rotary jet heads, rotary spray heads, tank accessories and tank covers.

Tank equipment

.
