The oil-fired Aalborg OS-TCi is a high efficiency boiler which is intended for steam production. It is designed to high-efficiency, user-friendly be self-cleaning and have environmentally friendly maintenance.
Aalborg OS-TCi is intended for steam production, the oil-fired Aalborg OS-TCi (formerly MISSION OS-TCi) is supplied as a vertical, preassembled boiler unit.
The boiler’s built-in TCi (Turbo Clean, intelligent) technology makes it self-cleaning to the highest possible degree, and what little maintenance remains is easy and has a low environmental impact.
Features and benefits of the Aalborg OS-TCi
- Oil-fired production of steam
- TCi (Turbo Clean, intelligent) technology for improved efficiency and self-cleaning without water washing
- Design pressure: 10 bar(g)
- Capacity: 750–8 000 kg/h
- Turbo self-cleaning
- Environmentally friendly maintenance
- User-friendly burner design
- Intelligent control for the future
- Scrubber compatible
Hoe het werkt

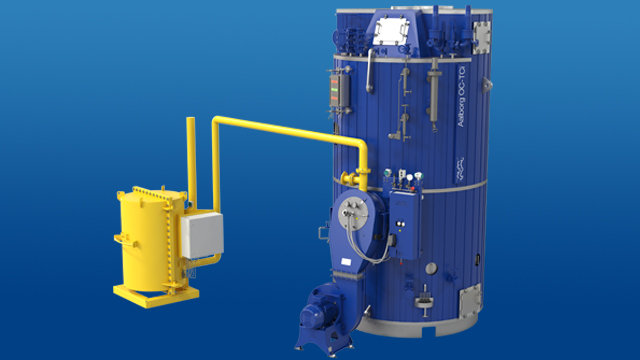

The Aalborg OS-TCi is a vertical, preassembled boiler unit. Constructed with optimally designed helix tubes that ensure excellent performance, it provides high reliability and efficiency. Moreover, its integrated pressure-atomizing burner is mounted at an incline, which enables good combustion with any fuel grade.
The boiler’s built-in TCi (Turbo Clean, intelligent) technology makes it self-cleaning to the highest possible degree. The little maintenance that remains is easy to perform and has low environmental impact.
Alfa Laval Aalborg pressure atomizing burner
The Aalborg KBM burner is a pressure-atomizing burner
designed for the continuous modulating operation of Aalborg
OS-TCi and OC-TCi boilers. This burner helps maintain uniform
combustion, which in turn contributes to improved heat
transfer efficiency and reduced fouling of convection surfaces.
Steam and hot water production
- Design pressure: 9 bar(g)
- Capacity: 750–8000 kg/h
- Burner recommendation: Alfa Laval Aalborg KBM pressure-atomizing burner
Typical vessel types:
- Container ship
- Bulk Carrier
- Cruise Vessel
- LNG/LPG Carrier
