Pretreatment systems for biofuels
Increasing demand for hydrotreated vegetable oil (HVO) calls for proven, reliable processes. Renewable fuel producers can rely on comprehensive Alfa Laval HVO pretreatment systems to produce renewable diesel and sustainable aviation fuels from a wide range of fats and oils, including recycled animal fat and used cooking oils. Our automated HVO pretreatment systems produce feedstock free from impurities and adjust free fatty acids for conversion into renewable hydrocarbon transportation fuels.
Boost the quality and yield of HVO biofuels
- Flexible, automated pretreatment systems for continuous handling high volumes of multiple feedstocks
- High yields of high-quality pretreated fats and oils
- Vast experience in energy-efficient and robust processing for the edible oil and the petroleum refining industries
- Leading technologies for waste water treatment and water recycling
- Global service network with local presence
Producing high-quality biofuels requires know-how. Alfa Laval has a deep understanding of hydroprocessing oils and fats into renewable fuels based on extensive experience with pretreatment systems for edible oil and petroleum refining.
To meet blending mandates and environmental legislation for low-carbon fuels, Alfa Laval helps optimize HVO pretreatment systems, prolonging the lifespan of the hydrotreating catalyst to fit the HVO licensors and refiners turn-around cycle times. No matter the feedstock type or quality, Alfa Laval HVO pretreatment systems can reduce the content of phosphorous, trace metals, chlorides, polyethylene and other impurities or adjust acidity through conditioning, degumming, adsorption and deacidification (if required).
Based on proven edible oil refining and petroleum refining technologies, these reliable HVO pretreatment systems from Alfa Laval optimize stand-alone facilities for HVO production as well as oil refineries converted into HVO production facilities. All backed by our global service network with a local presence.
How it works

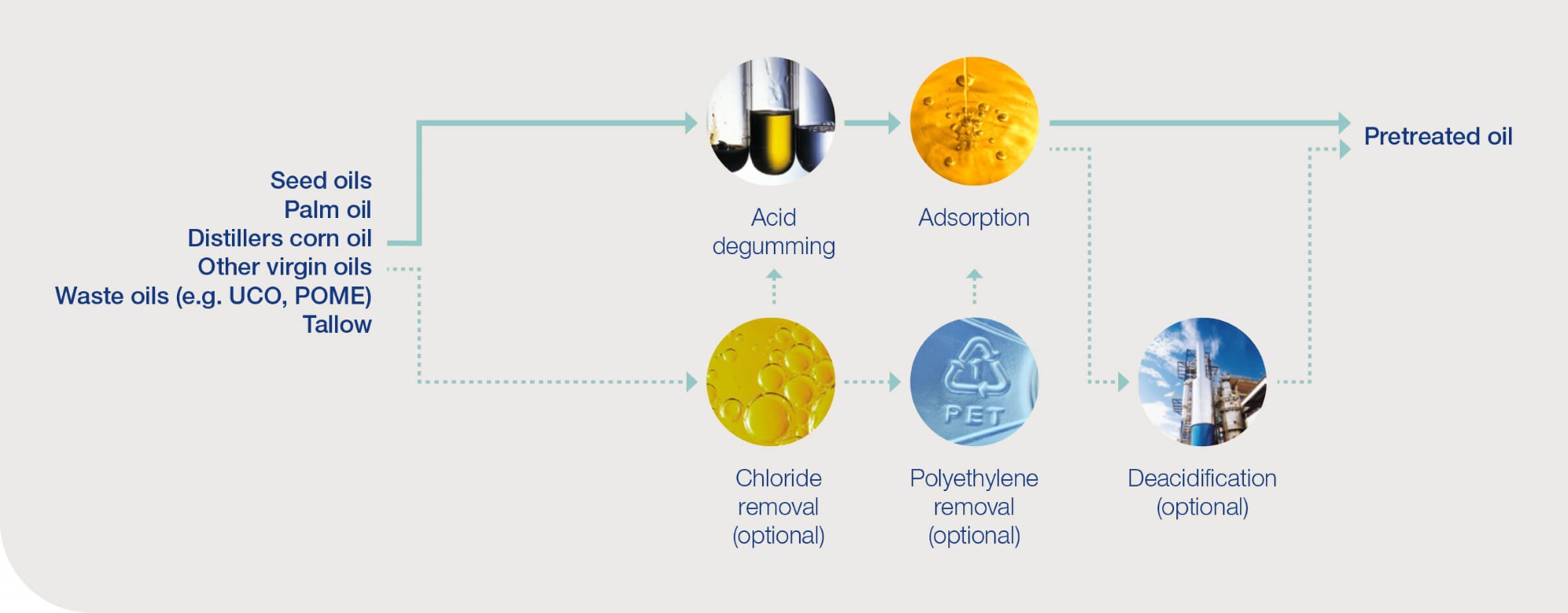

How the HVO pretreatment process for biofuels works
Pretreatment begins with carefully engineered steps to prepare raw feedstocks such as used oils and fats. Alfa Laval HVO pretreatment systems combine advanced separation, heat exchange, and purification technologies to eliminate impurities and ensure HVO biofuel feedstocks meet the strict purity standards required for the production of biodiesel from vegetable oil and sustainable aviation fuel (SAF).
Physical vs. chemical refining for HVO
Alfa Laval HVO biofuel pretreatment systems support both physical and chemical refining processes. For HVO, physical refining is preferred, using special degumming and/or enzymatic degumming, adsorption, and, when required, deacidification. Chemical refining is primarily used in biodiesel (FAME) pretreatment, where Alfa Laval also has extensive experience.
Removing phosphorous and trace metals
Feedstocks, such as tallow, soy, rapeseed, distillers corn oil, recycled animal fats, and used cooking oils, undergo acid degumming (citric or phosphoric), followed by washing and adsorption using bleaching clays. Alfa Laval process design based on separators, specially engineered equipment and plate heat exchangers ensure effective impurity removal with high energy efficiency.
Removing chlorides during HVO pretreatment
Chlorides, if present, are removed early through water washing, then processed using Alfa Laval separators and plate heat exchangers. This critical step protects downstream equipment and ensures reliable HVO biofuel production.
Eliminating polyethylene impurities in feedstocks
Certain feedstocks, such as some tallow grades, may contain polyethylene impurities. Customized Alfa Laval HVO pretreatment systems remove these through crystallization and filtration, enabling the processing of more challenging feedstocks in accordance with HVO purification standards.
Fatty acid management in HVO feedstock
Excessive fatty acid content can cause corrosion issues in hydroprocessing plants if the metallurgy is not compatible. Risks are mitigated through feedstock blending or steam stripping under vacuum conditions. An Alfa Laval Aalborg High Pressure Natural Circulation (HPNC) boiler, welded and gasketed plate heat exchangers, and stripping column provide efficient fatty acid removal.
Contact us
Webinars for the Edible Oil industry
Our experts share know-how to optimize edible oil refining processes, remove impurities and volatile components for better product quality, safety and yield.
Related products:
Related industries
Services

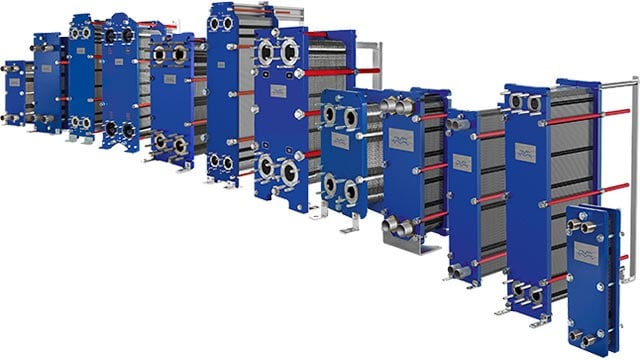

Key components used in the HVO pretreatment systems
