Customer references for Alfa Laval spiral heat exchangers



Alfa Laval heat exchangers help boost capacity in bio-refinery

SunPine AB Sweden increased capacity and reduced maintenance needs in its bio-refinery in Piteå, Sweden by installing Alfa Laval spiral and Compabloc heat exchangers. Close cooperation between SunPine and Alfa Laval was an important part of the successful execution of this project.

Pinecone on tree

How 8 spiral heat exchangers saved €1,647,000 a year

High cost of maintenance for the heat exchangers used in the visbreaking process at a newly acquired refinery plant in Russia was a key concern. Alfa Laval was asked to prove that their spiral heat exchangers could solve the problem and delivered that proof – along with some impressive savings.

Details of oil plant in sunset

Spiral heat exchanger solves costly fouling problems

A major US refinery was experiencing severe fouling and plugging problems in two shell-and-tube heat exchangers installed to cool desalter effluent using cooling water. When replacing them with a fouling-resistant spiral heat exchanger the result exceeded expectations.

Refinery plant lit up at night

The ultimate solution to fouling problems

Leuna Germany’s MIDER refinery, owned by Total S.A., originally installed two tubular heat exchangers for cooling bottoms product in their fluid catalytic cracking unit. When replaced with spiral heat exchangers, down-time and maintenance cost were drastically reduced.

Installed Alfa Laval welded spiral heat exchanger at Mider refinery.



Capacity boost by 30% and emission cuts by 80%

Retrofitting the Remat Chemie vacuum film evaporators with special double-pass Alfa Laval Compabloc heat exchangers and one spiral heat exchanger as a preheater boosts capacity and reduces emissions.

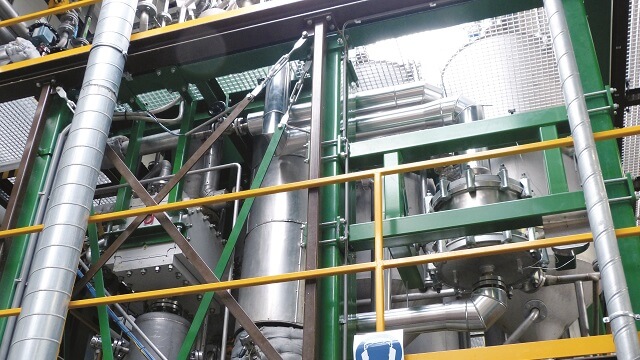

Compabloc heat exchanger installed in chemical plant

Frequent cleaning a thing of the past

Mexichem, a global leader in plastic piping systems and in the chemical/petrochemical industries, needed to increase its production capacity to meet market demands. As an added bonus the extra heat recovered by the new heat exchangers resulted in annual steam savings of 110,000 euros.

Happy customers at Mexichem in front of an installed Alfa Laval spiral heat exchanger

Hot and cold water for free

A mid-sized styrene butadiene rubber producer in Asia installed two Alfa Laval spiral heat exchangers and one Compabloc to recover waste heat from a stripping column. The heat is now reused in the plant and annual energy costs are estimated to be about 660,000 euros lower as a result.

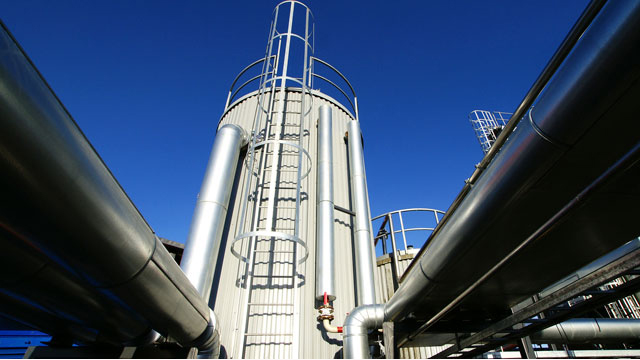

Stripping column at chemical plant

Other industries

. .

Coke oven gas

Base minerals and mining

Energy savings and reduced emissions at coke plant

To comply with European emission and process regulations for the coke industry, Avdeevskiy coke processing works in Ukraine replaced two open final gas cooling systems, using scrubbers, with Alfa Laval closed systems utilizing 11.5 metre high spiral heat exchangers in its plant.

Coke oven gas plant

One of the world's largest zinc producers

"We use these units because they’re very strong and very easy to clean and of course because the thermal efficiency is high." - Francisco Tarmago, Technology Manager, Asturiana de Zinc

Asturiana zinc production
