Printed circuit heat exchangers

Alfa Laval printed circuit heat exchangers (PCHEs) combine superior robustness and integrity with an exceptionally high heat transfer rate, in a unit that’s up to 85 % smaller and lighter than comparable shell-and-tube exchangers. The unique design results in excellent performance, lower installation and operational costs, as well as improved safety. Each unit is also fully customizable according to your exact needs.

阿法拉伐印刷电路板换热器(PCHE)-printed circuit heat exchangers

First-class efficiency with the smallest possible footprint

  • All-stainless-steel construction, fully customizable to match the duty position and application required
  • Robust design handles pressures up to 1000 barg (14,500 psi) and temperatures ranging from -196°C (-320°F) to 800°C (1472°F)
  • Allows 1°C approach temperatures within your process
  • Immune to the effects of fluid pressure pulsations and fluid flow induced vibration
  • Fully compliant with ASME Boiler & Pressure Vessel Code (Section VIII, Division 1 with U Certification Mark) and CE Marking (as per PED 2014/68/EU)
Alfa Laval printed circuit heat exchangers are an ultra-compact solution for improving sustainability in marine, energy and oil & gas applications. Photo-chemically etched fluid channels provide exceptionally high thermal performance, while state-of-the-art diffusion bonding produces a solid core packed with heat transfer area. The combined result is maximum efficiency and minimum footprint, ensuring the lowest total lifecycle cost.



.

Contact us

We will be happy to discuss the benefits a printed circuit heat exchanger can bring you and show how we can help improve your operation.

smiling engineer at printed circuit heat exchanger installation

Applications

Alfa Laval printed circuit heat exchangers are designed specifically to deliver unparalleled compactness and efficiency in clean and high-pressure duties that are beyond the capability of other welded plate type heat exchangers. The robust design can reliably handle pressures ranging from full vacuum to 1,250 bar (18,125 psi).

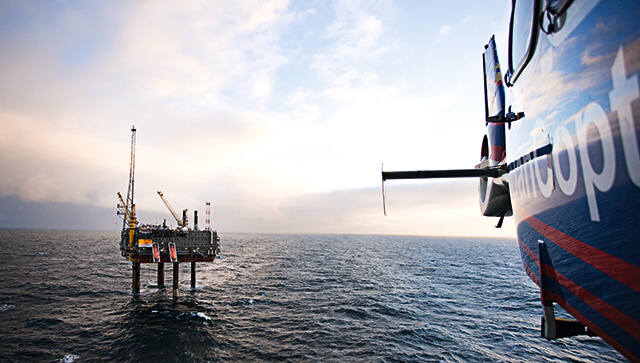

Typical marine applications include high-pressure vaporization in fuel gas supply systems (FGSS), LNG regasification on FSRU and SRV™ vessels. In the energy sector, printed circuit exchangers are used in gas processing and cryogenic LNG applications.  Typically, these are gas compression systems offshore, hydrocarbon gas and water dew-pointing. In LNG, where high energy recovery is desired, they are used in End Flash Gas and BOG handling systems. They can also be found in turbine fuel gas preheating and supercritical carbon dioxide (sCO2) applications for power generation.

In renewable energy applications PCHEs are proving to be a great technology fit in high-temperature long duration energy storage (LDES) processes, as well as evolving niche positions in carbon capture.

Combining the proven advantages of our classic PCHE design with our 3DPlate™ anti-freezing technology also opens up use across the whole hydrogen refuelling station energy chain from liquid to gas. In hydrogen refuelling stations, Alfa Laval PCHEs are an ideal solution for precooling of hydrogen, offering possibilities to reduce filling times and wait times between refuels, while minimizing installation costs.

Technical data

Design pressure

EN/CE/PED Vacuum to 1,250 barg (18,125 psig)
ASME Vacuum to 1,250 barg (18,125 psig)

Design temperature

316/316L SST –196°C (cryogenic) to 800 °C (–321°F to 1,472 °F)

Connections

Customizable from small tube to large pipes (¼ to 30)

Standard materials

304L or 316L SST (other materials available on request)

Dimensions/Weights

On request, tailored towards requirements ranging from a few kilograms to tens of tons

Improving sustainability with welded solutions from Alfa Laval

Improving sustainability with welded solutions

Improving sustainability with welded solutions from Alfa Laval

Alfa Laval welded heat exchangers maximize energy efficiency and heat recovery, with innovations that deliver exceptional thermal performance and reliability, for a wide range of duties. But it’s more than technology. It’s also the people: experienced experts with deep process knowledge and a global service presence. Combined, that’s how you improve sustainability.

How it works

.

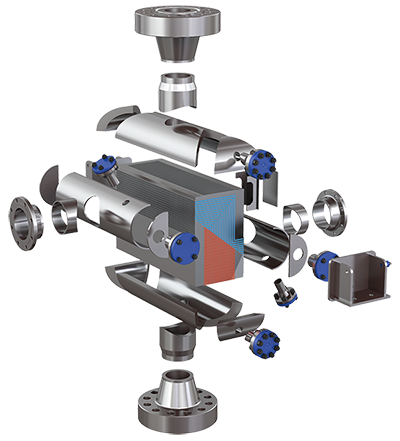

Alfa Laval Printed circuit heat exchanger

Working principle

Printed circuit heat exchangers operate with two or more media on opposite sides of a diffusion welded plate. It is possible to have high-pressure flows on both sides, and a 2D or 3D plate pattern can be optimized to provide the required thermal length and pressure drop.

Design

The printed circuit heat exchanger design has a complex flow pattern chemically etched on flat sheets of material. This flow pattern is optimized for each specific customer duty to provide the required thermal and hydraulic characteristics. Each flow circuit plate pattern can be different, giving the possibility of asymmetric flows and optimized 2-phase behaviour.

The individual plates are then stacked into a block and diffusion welded (bonded) in a state-of-the art furnace at high temperature and pressure. Multiple blocks can be welded together to create the required thermal capacity or heat transfer area. Inlet and outlet flow manifolds, customer connections and (if required) connections for drain, vent or cleaning form the welded header assemblies, which are welded onto the completed core to finalize the heat exchanger.

Design pressures of up to 1,250 bar (18,125 psi) in 304/316 stainless steel are achievable with this configuration.
Heat transfer surface areas are tailored based on requirements.

.

Unique features that make the difference

Alfa Laval has more than 80 years’ experience in heat transfer technology, and we are continuously developing new innovations to improve the performance, reliability and sustainable impact of our equipment. Our printed circuit heat exchangers include a number of unique features you won’t find anywhere else:

Alfa Laval PCHE with OptiBondOptiBond™

A robust and compact solution for high-pressure needs

State-of-the-art diffusion welding (bonding) technology provides the highest durability and thermal efficiency within an ultra-compact welded plate heat exchanger.

Find out more

Alfa Laval PCHE with 3DPlate3DPlate™

Prevents clogging under freezing conditions

A patented 3D plate pattern maintains high efficiency and maximum uptime when using water-based fluids like glycols in cryogenic applications.

Find out more
