Preventive maintenance for gasketed plate heat exchangers

The proactive approach to safety and uptime

Gasketed plate heat exchangers are resilient, but like all equipment they require proper maintenance. Alfa Laval Integrity Testing can help you identify potential problems like cracks or leaks, so that you can take necessary actions in time and avoid unexpected breakdowns. Thanks to this preventive service, you can plan maintenance for plate heat exchangers and ensure safety of your product.

integrity test detector 640x360

What is Integrity Testing?

Alfa Laval Integrity Testing is designed especially for gasketed plate heat exchangers. It helps you understand more about the condition of your plates and gaskets. With this knowledge you can schedule service and maintenance work of your gasketed plate heat exchangers, stay in control of your production process and secure safety of your product. The proactive approach gives you confidence in the reliability of your equipment.

plate heat exchangers maintenance_640x360.png

Integrity Test image_640x360.png

How does Integrity Testing work?

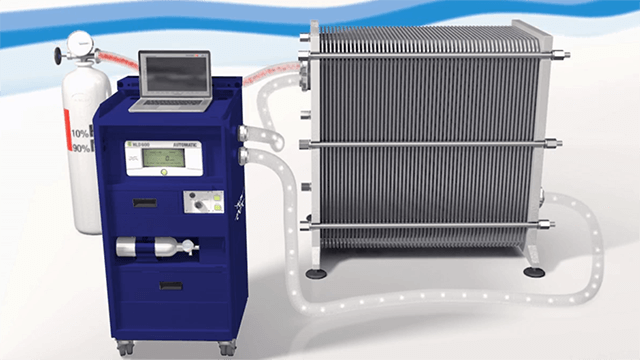

Our Integrity Testing offers unmatched accuracy and safety. A non-toxic, non-flammable mix of hydrogen and nitrogen is pumped through your gasketed plate heat exchanger, revealing any microscopic cracks, corrosion or material fatigue. Our precision sensors pick up any discharge of gas and can even identify the type of flaw - micro-cracks, corrosion, gasket failure and more. The test can take as little as 15 minutes per section.


Integrity Testing method

In designing our Integrity Test, we chose a methodology that delivers accuracy, safety, speed and sustainability.

Accuracy

The hydrogen-nitrogen mix is the ideal substance for testing the condition of your gasketed plate heat exchangers, as it diffuses quickly and completely revealing flaws smaller than liquid can permeate anywhere inside your units. Since the hydrogen-nitrogen mix dissipates quickly after use and has a very low ppm in the atmosphere, it has a lower probability of false positives than other tracer gases such as helium. Our automated detection system minimizes risk of user error.

Safety

Our hydrogen mix is non-flammable (ISO 10156 classified), non-toxic and does not damage your plates and gaskets. It is approved for use in the food industry and does not contaminate your equipment.

Speed

Testing your gasketed heat exchangers is quick and convenient, as it does not involve opening the plate packs. We simply connect the gas pumps to a drained unit and the results can be seen 15 minutes later. It doesn’t require cleaning or any other post-test procedures and can even be used with hard-to-access units.

Sustainability

Unlike helium, which is a scarce and non-renewable natural resource, hydrogen and nitrogen are sustainable, non-scarce resources that can be used without environmentally harmful outcomes.

Integrity Test leak detection mode_640x360.png

Integrity Test leak detection_640x360_.png

The Integrity Test Balloon Experiment

In the food and beverage industries, safety is paramount. At Alfa Laval, we believe proactivity is the best way to ensure safe production and that’s why we offer an integrity test for heat exchangers. This video illustrates our approach.

Documentation

More information about Integrity Testing can be find in the brochure which you can download here.

Integrity testing - 640x360

Request for a test

Want to know more about the condition of your plates and gaskets? Fill out below questions to request a test.

Testing and training - 640x360px

Watch the video to explore how Integrity Testing works

With this test our experts can detect cracks in your unit’s plates and evaluate the risk of media cross-contamination. How does it work? Watch this explanatory animation.
