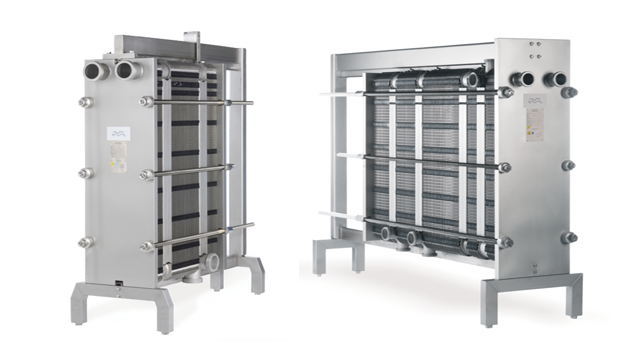

Alfa Laval BaseLine is a competitive range of gasketed plate-and-frame heat exchangers for simpler dairy, food, beverage, pharma and other hygienic and utility applications.
Design and construction enables combination of plates and material – vast choice of gasket material
- Service-friendly – FDA compliant gaskets for easy opening, plate inspection and cleaning
- Fouling resistance and thermal efficiency thanks to range of pressing depths and chevron patterns as well as various corrugations
- Flexible – heat transfer area can be modified by adding or removing plates or combining different plates and material if process parameters change
- Suitable for multi-section plate heat exchangers for pasteurization

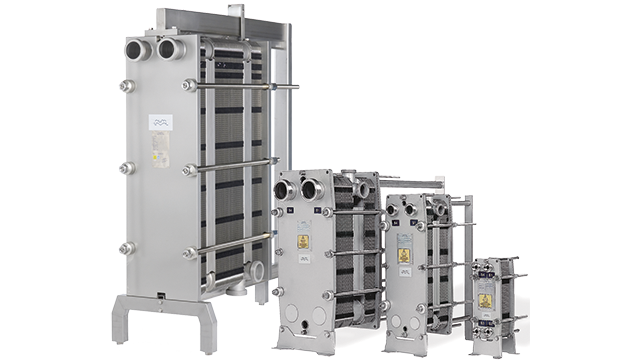

Optimization of duties: BaseLine plate and frame heat exchangers are available in four different sizes (Base 3, 6, 10 and 11) and work with various plate types to ensure optimal performance for your dairy, food or beverage application.
See Alfa Laval Frontline for more demanding hygienic applications.
Plate types for different hygienic needs
Two different plate types are available for BaseLine & M Line gasketed plate heat exchangers:
- Chevron type plate pattern ensures good distribution of the product as well as high thermal efficiency and is used in food, dairy, beverage and pharma industries.
Gemini double-wall plates ensure a fully mix-proof design. It consists of two plates pressed together and prevents cross contamination between fluids in case of leakage through the plates.

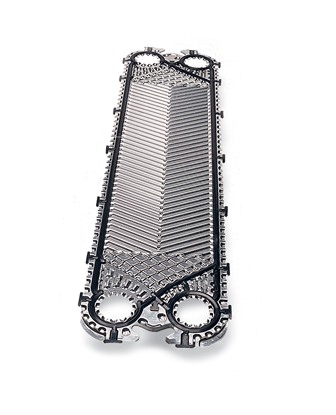

The chocolate pattern distribution area ensures that the fluids are evenly distributed across the entire plate to avoid stagnant zones that can result in fouling.
How it works
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, where the counter-current flow helps attain the highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer. Our thermal design engineers will help you design and select the model and configuration that is suitable for your application needs while delivering maximum thermal performance and minimizing pressure drop.
Alfa Laval hygienic liquid/liquid GPHE
Alfa Laval multi-section pasteurizer GPHE
Multi-section hygienic GPHE
Connection plate roller
Fixed bolt head
Key hole bolt opening
Pressure plate roller
Tightening bolt cover
Part of a broad range of hygienic gasketed plate heat exchangers
FrontLine is a premium range of hygienic heat exchangers used for heat sensitive media.
BaseLine is a competitive heat exchanger for a variety of hygienic processes and utility applications.
M line is a standard heat exchanger choice for a variety of applications where higher design pressure is required.
Ten top tips - Hygienic Gasketed Plate Heat Exchangers
Here are some tips and service videos to show you how you can keep your hygienic gasketed plate heat exchangers in tip top condition.
Alfa Laval's hygienic equipment combines high performance with gentle handling to preserve sensitive ingredients and keep up with the food industry trends. The equipment addresses four key challenges; supplying food products to consumers at a competitive price, getting the most from raw materials, reducing waste and emissions, and delivering safe and hygienic food products.
